Choosing the wrong valve for an application is one of the most costly mistakes in process plant design. It leads to premature failure, process inefficiency, unplanned shutdowns, and safety risks. With dozens of valve types and hundreds of variants available, engineers often struggle to make the right selection the first time.
This guide walks through a structured 5-step selection process and covers the six most common industrial valve types — helping you match the right valve to your specific service conditions.
5-Step Valve Selection Process
Define the function — On/Off, Throttling, or Check?
Valves serve three primary functions. On/Off (isolation) valves fully open or close flow — use ball, gate, or butterfly. Throttling (control) valves regulate flow rate — use globe or control valves. Check valves prevent backflow — use swing check or dual plate check.
Identify the fluid — liquid, gas, slurry, steam?
The fluid medium drives material selection (body, trim, seats) and determines acceptable leakage. Corrosive media need SS 316 or alloy trim. High-temperature steam requires IBR-approved valves. Abrasive slurries need rubber-lined or tungsten carbide coated seats.
Determine pressure and temperature rating
The ASME pressure class (150, 300, 600, 900, 1500, 2500) must match or exceed the system's operating pressure at the maximum temperature. Always account for pressure surges and thermal transients — not just steady-state conditions.
Choose end connection and size
Flanged (RF, RTJ, FF), butt weld, socket weld, or threaded ends — the choice depends on pipe size, pressure class, and whether future maintenance access is needed. Flanged valves allow in-line removal; welded ends give leak-tight permanence.
Check applicable standards and certifications
Oil & gas: API 6D (pipeline), API 600 (gate), API 608 (ball). Power: IBR (India), ASME B16.34. Marine: Lloyd's or BV approved. Chemical: NACE MR0175 for sour service. Always specify the required testing standard (API 598, API 6D) in your purchase order.

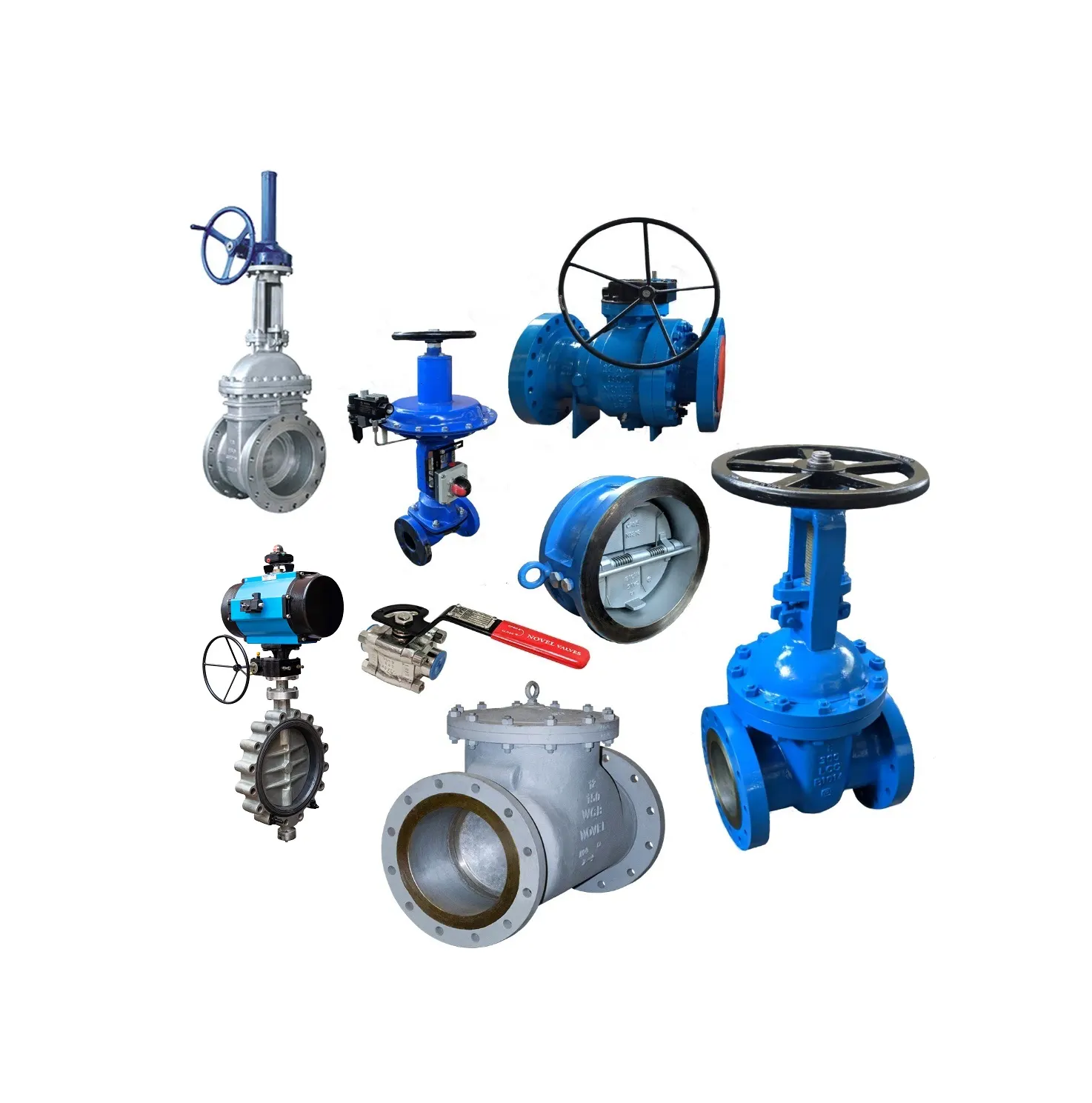

Industrial Valve Types: Quick Reference
Ball Valve
Best for: Fast on/off isolation, tight shutoff, high-pressure/high-temperature service
Avoid when: Continuous throttling (damages seats over time)
Gate Valve
Best for: Full-bore isolation with minimal pressure drop; infrequent operation
Avoid when: Throttling, frequent cycling, or space-constrained installations
Globe Valve
Best for: Throttling, frequent operation, precise flow regulation
Avoid when: Low pressure drop is critical (high CV requirement)
Butterfly Valve
Best for: Large diameter, low-pressure service; compact and lightweight
Avoid when: Very high pressure, slurry with abrasives, or bubble-tight shutoff required
Control Valve
Best for: Automated flow/pressure/temperature control with actuator; PID loop integration
Avoid when: Manual-only operation or simple on/off service (use ball or gate instead)
Check Valve (Swing / Dual Plate)
Best for: Preventing backflow in pump discharge, compressor outlets, and pipelines
Avoid when: Vertical downward flow (use piston or ball check instead)
Common Valve Selection Mistakes to Avoid
- Undersizing for Cv: A valve that's too small creates excessive pressure drop; too large causes control problems at low flow.
- Wrong material for the medium: Carbon steel body with SS trim is not suitable for chloride-containing media — specify SS 316 body.
- Ignoring end-of-line conditions: Valves at pump suction need full-bore, low-drop designs; valves at compressor outlets need fast-closing check valves to prevent surge.
- Not specifying leakage class: For critical applications, always state leakage class (ANSI/FCI 70-2 Class IV, V, or VI) in the datasheet.
- Overlooking actuation requirements: If the valve needs to operate remotely or fail-safe, specify actuator type (electric, pneumatic, hydraulic) and fail position (fail-open or fail-closed) up front.
Valve Selection Quick Reference Table
| Application | Recommended Valve | Standard |
|---|---|---|
| Oil & Gas pipeline isolation | Ball Valve (DBB or TSBV) | API 6D |
| Refinery process on/off | Gate Valve (forged/cast) | API 600 / API 602 |
| Steam flow control | Globe Valve (IBR) | BS 1873 / IBR |
| Large-bore water isolation | Butterfly Valve | API 609 |
| Cryogenic LNG service | Cryogenic Ball / Gate Valve | BS 6364 |
| Slurry / abrasive service | Knife Edge Gate / Plug Valve | API 598 |
| Pump discharge backflow | Swing Check / Dual Plate Check | API 594 |
| Chemical dosing control | Diaphragm Valve | ISO 16138 |
